    Dia 200MM Two Axis Two Metal Frame EO Pod With Three Sensors For Surveillance System

    Ask Lasest Price
    Brand Name : Qiansight
    Model Number : HS101C-DT-200
    Price : negotiated
    Payment Terms : T/T, L/C
    Supply Ability : 1000 units/month
    Delivery Time : 25-30 days
    • Product Details
    • Company Profile

    Dia 200MM Two Axis Two Metal Frame EO Pod With Three Sensors For Surveillance System

    Production Description of Two-Axis Two-Frame EO Pod for Recognizing and Tracking System


    This model is a two-axis, two-frame EO Pod, equipped with a built-in 30x continuous optical zoom visible light camera, a mid-wave cooled infrared imaging assembly, and a laser rangefinder. It also includes an anti-latency module, AI object recognition, and multiple objects tracking modules. It is primarily used for surveillance applications such as imaging, detection, positioning, tracking, and identification of ground objects. It is designed to meet the needs of various operations, including line inspection, accident investigation, emergency response, law enforcement evidence collection, and counter-terrorism and anti-riot activities.


    Technical Parameter of Dual Axes Three Sensors EO POD for Surveillance


    ServoTV
    Heading Range N×360°Band0.4μm~0.9μm
    Pitch Range -120°~40°Resolution Ratio1920×1080
    consistency in accuracy ≤100urad(2°/1Hz,1°/2Hzfrequencyfluctuation)Focal LengthF=4.3~129mm
    AngularMeasurementAccuracy ≤1mradViewing Angle63.7°~ 2.3°
    Angular Velocity ≥60°/sOptical Zoom30X
    Angular Acceleration ≥150°/s²Detection Rangehuman6km,vehicle15km
    Single Object trackingRecognition Distancehuman2km,vehicle8km
    Target Type generic objectivesIR
    Tracking Rate ≥32pixel/frameBand3μm~5μm
    Update Frame rate ≥50FPSCool-down Time≤6min
    Multiple Objects trackingResolution Ratio640×512
    Object Type human, vehicle, ships, airplanesPixel15µm
    Recall ≥90%Focal Length40~220mm zoom/F4.0
    Accuracy ≥80%Field of View Angle13.75°~2.5°
    Minimum Target Size 32×32 @1080PDetection Rangehuman4.6km,vehicle20.0km
    Tracking Target Quantity ≥20Recognition Distancehuman1.1km,vehicle5.0km
    Tracking Transition Rate ≤15%Laser Range Finder
    Tracking Transition Rate ≥20FPSBand1064nm
    Interface SizePulse Energy40mJ
    Dimension ≤Φ200mm×260mmRanging Range300m~8000m
    Weight ≤5.5kgRange Accuracy±5m
    Power Supply18~32VDC(featuring spike and surge protection capabilities)Illumination Encoding Method and PatternPrecise Frequency Code, with a single illumination duration of not less than 25 seconds (encoding can be set).
    Consumption 20w(average)50w(peak value)Video and Storage
    Communication Interface Serial port,1GbpsPhoto FormatJPEG
    Video Interface 1Gbps,SDIVideo FormatMP4
    Environment TemperatureEncoding FormatH.264,H.265
    Operation Temperature -40℃~ 60℃Video ProtocalTS,RTSP,RTMP,UDP etc
    Storage Temperature -45℃~70℃Storage128GB
    Impact 20g,11ms

    Key Features for Multi Sensors Eletro Optical System / IR Tracking / Laser Range Finder for Servillance


    AI object recognition: human, vehicle, ship, and target recognition
    AI assisted locking: automatic target recognition and tracking
    AI Anti occlusion Tracking: Object Recognition Assisted Stable Tracking Two-axis stability: comprehensive isolation of carrier angular motion
    Two sensors photography and recording: supports post analysis
    Electronic image stabilization: sub-pixel level stable experience
    Anti link delay: moving objects, precise locking
    Multiple objects recognition and tracking: supports keyboard locking of objects and voice locking of objects
    Web page remote upgrade: remote support, second level response

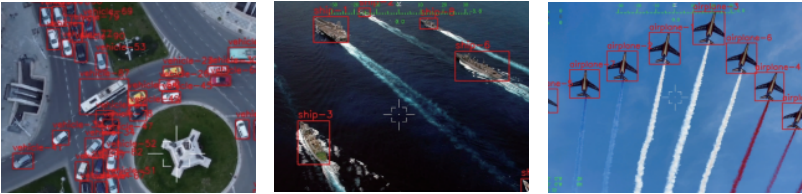

    Recognition effect
